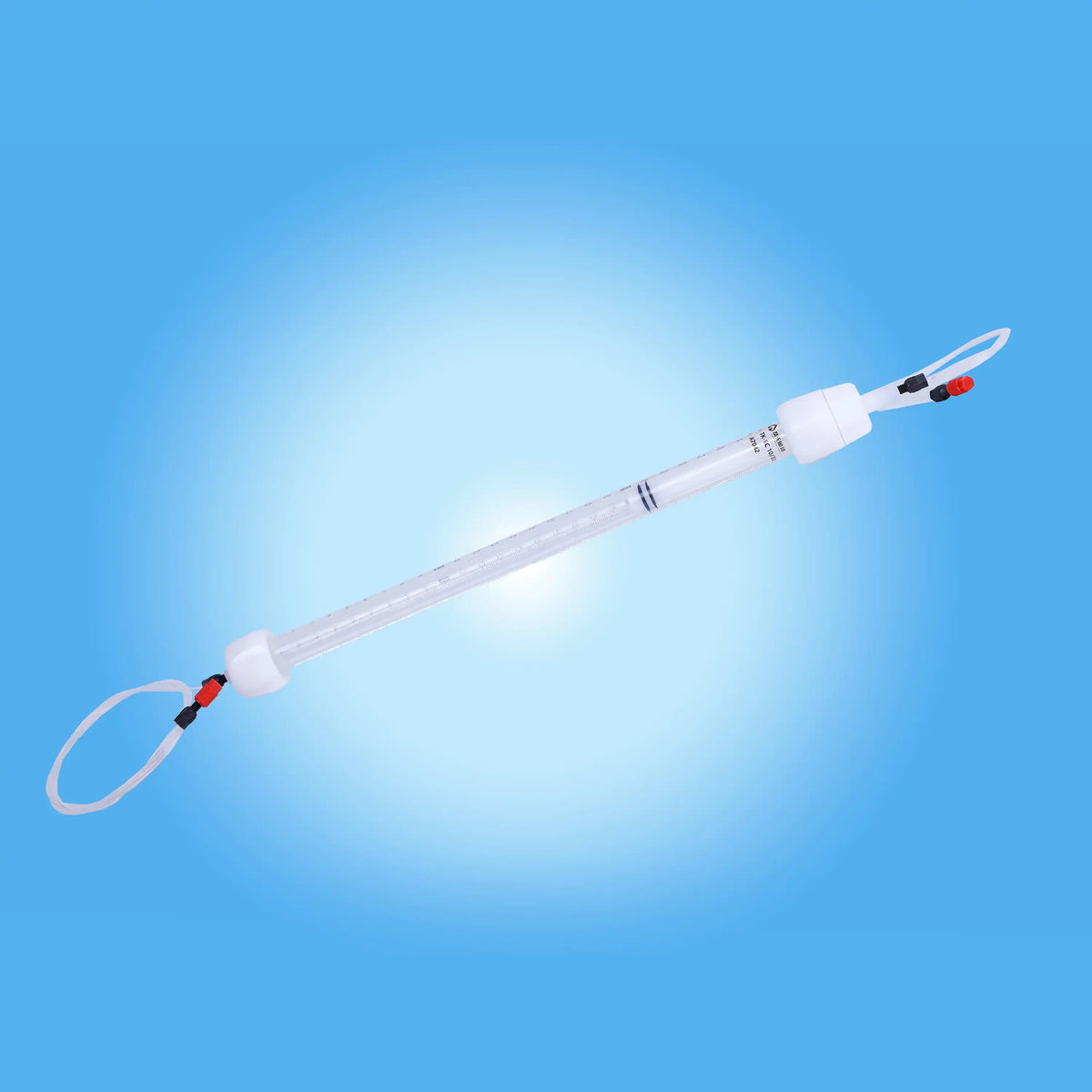

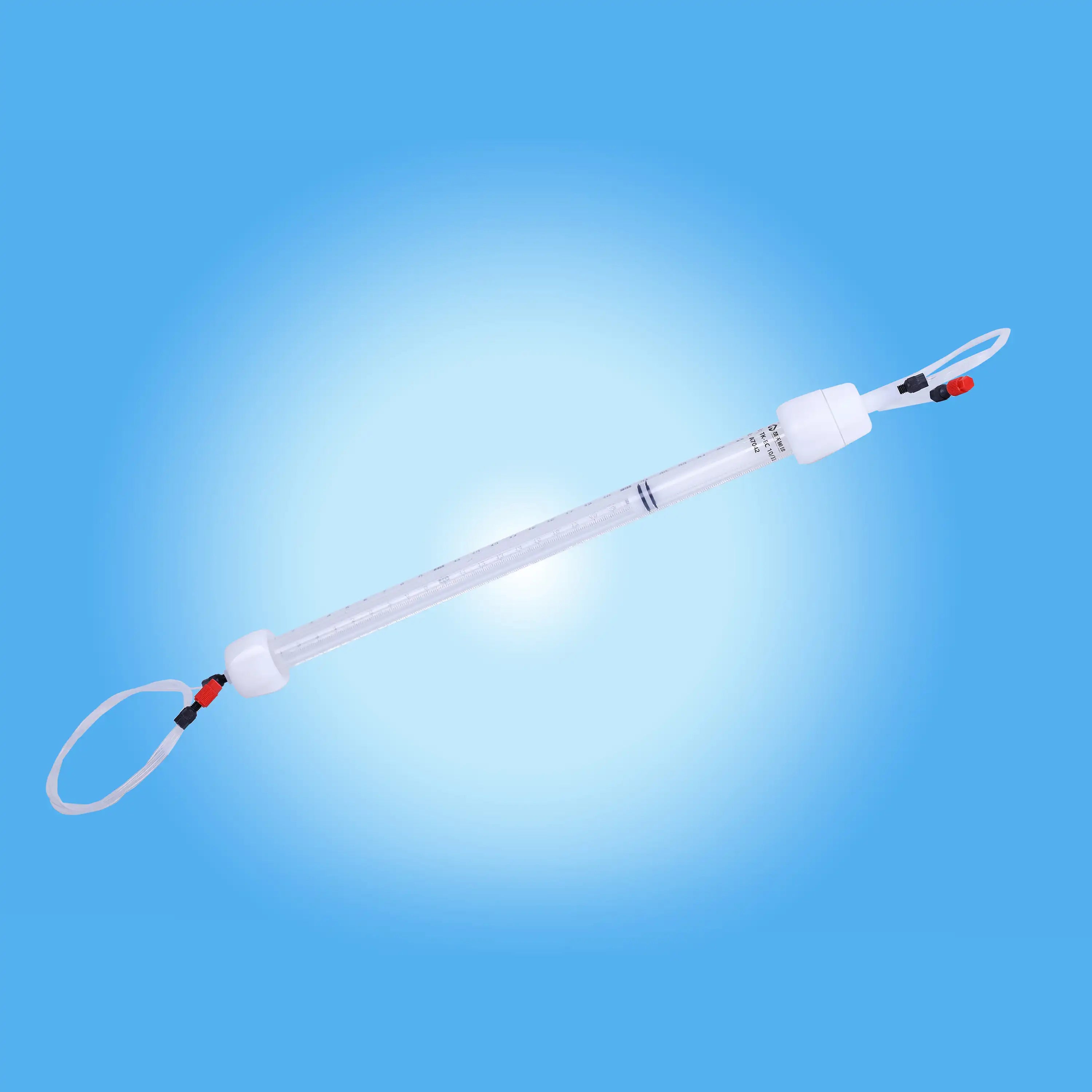

TK-EC 10 series laboratory medium-pressure chromatography columns are low and medium-pressure chromatography columns designed for users in the field of recombinant proteins, antibodies, vaccines, blood products and other biomacromolecules, as well as antibiotics, peptides, synthetic drugs, and natural products, and small molecules, and are suitable for low and medium-pressure chromatography medium on agarose, dextran, and polymer bases. It can be easily connected with all kinds of domestic and imported chromatography systems, which is made of high-precision borosilicate glass tubes and PEEK plastic, with good biocompatibility and chemical resistance, suitable for most of the aqueous solutions.
Features:
- Easy to use, easy to operate
- Optional double column head, the height of the installed column has more flexible space
- Inverted port interface design and high elasticity sealing ring effectively prevent leakage
- Better resistance to organic solvents
- Uniform liquid flow distribution in the column head, easy to load high efficiency chromatographic Columns
Specifications:
| Product |
TK-EC 10/25 Single adapter |
TK-EC 10/25 Dual adapter |
| Inner Diameter |
10 mm |
| Pressure Resistance |
30 bar |
| Column Height |
250 mm |
| Bed Height Range |
130–220 mm |
52–220 mm |
| Bed Volume |
11–17.3 mL |
4–17.3 mL |
